Week 4

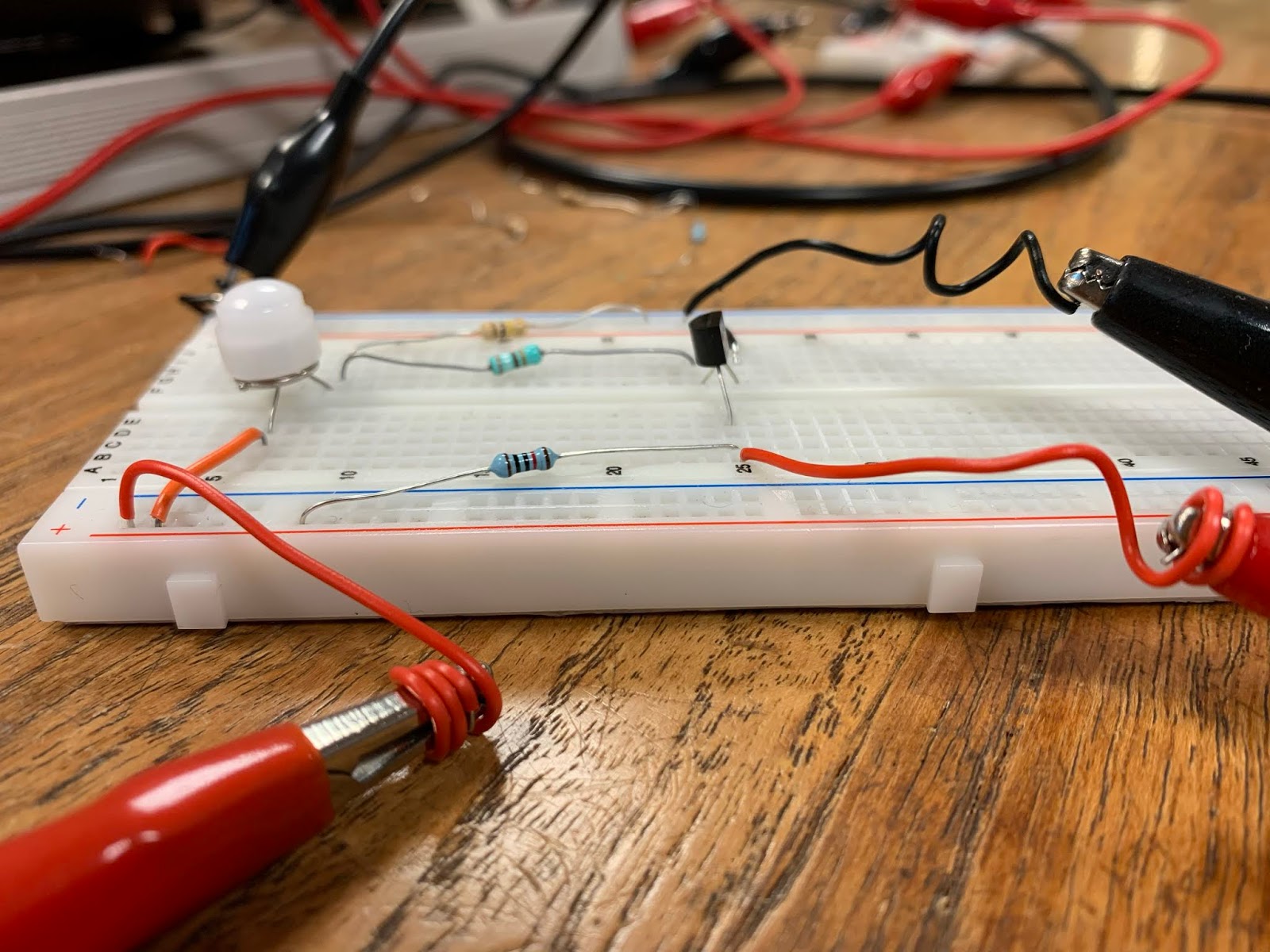

In week 4, we tried a different circuit connection. we got a very good voltage output using this circuit

using this circuit we got this output from the oscilloscope:

this was a good indication that the sensor was working. However, only one sensor was working with a weird amplification. This meant that there is more troubleshooting that needs to be done in week 6.
